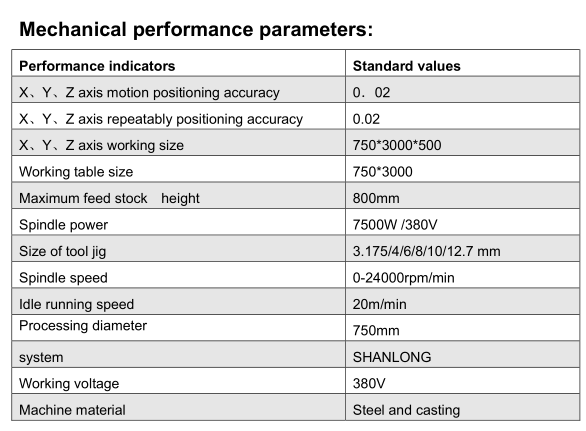

Technical Parameter
Performance indicators
Standard values
X、Y、Z axis motion positioning accuracy
0.02
X、Y、Z axis repeatably positioning accuracy
X、Y、Z axis working size
750*3000*500
Working table size
750*3000
Maximum feed stock height
800mm
Spindle power
7500W /380V
Size of tool jig
3.175/4/6/8/10/12.7 mm
Spindle speed
0-24000rpm/min
Idle running speed
20m/min
Processing diameter
750mm
system
SHANLONG
Working voltage
380V
Machine material
Steel and casting
